WJ VALVES AND BOILER MOUNTINGS
WJ VALVES AND BOILER MOUNTINGS
CAST STEEL
LIFT CHECK VALVE
DESERIPTION

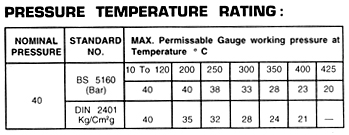

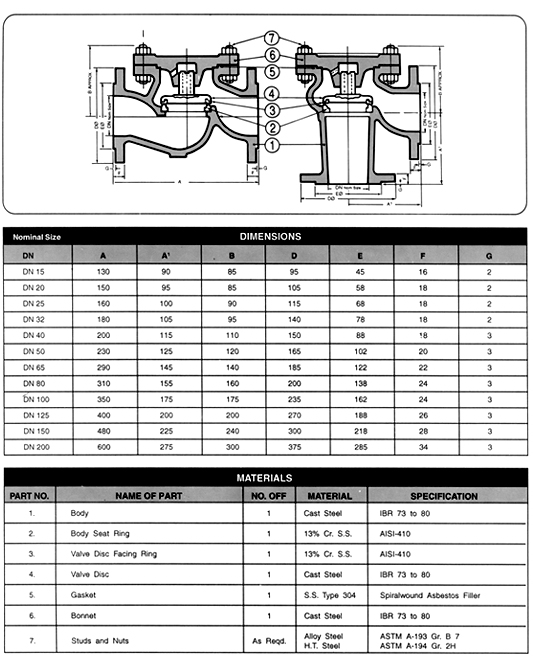

'WJ' Cast Steel Lift Check Valve to BS - 5160 / DIN 2401, PN - 40, Straight or Right Angle Pattern, 13% Cr. S.S. (AISI - 410) Trim, Bolted Bonnet, Integral Flanges as per BS - 4504 Part I Table 40 / 1/ DIn 2545 Pn -40 Raised Face. Body Tested to 60 BAr Gauge and Seat Tested to 40 Bat Gauge Hydraulic Pressure.
SALIENT FEATURES :
1)
 Stream lined full flow area is provided in the body to minimise pressure drop in the body.
2)
 Renewable S.S. 13% Cr. (AISI- 410) body seat ring and disc facing ring have at least 50 H.B. difference in hardness.
3)
 Bolted body cover joint.
4)
 Self aligning filly guided disc ensures proper seating of valve disc on body seat ring.
  WJ VALVES AND BOILER MOUNTINGS
TESTING AND CERTIFICATIZON :
All valves tested at double the max. working pressure. Each valve is supplied with IBR Test Certificate in Form III - C issued by The Director of Boilers, Punjab.
